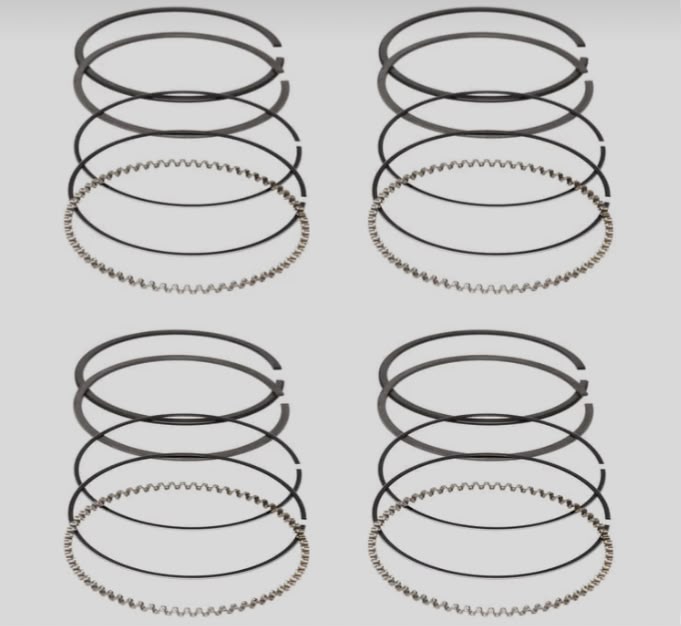

ZOOMLION RK754 75HP TRACTOR PISTON RINGS

Product Overview

The Engine Piston Ring Set for the Zoomlion RK754 (75HP) tractor is a high-precision, heavy-duty sealing component engineered specifically for the 4-cylinder diesel engine (such as the Yuchai 3.6L series) powering the Zoomlion 75HP tractor range. Piston rings are vital for maintaining engine power, maintaining high compression ratios during heavy agricultural field work, and preventing excessive oil consumption.

Key Features & Technical Specifications

• Vehicle & Engine Fitment: Custom-designed for the Zoomlion RK754 75HP 4WD Tractor (Yuchai 4-Cylinder Turbocharged/Direct-Injection Diesel Engine).

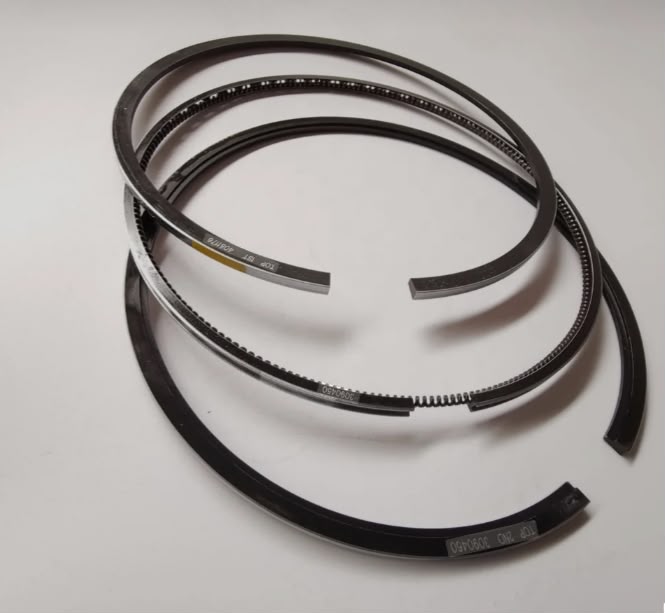

• Multi-Ring Construction: Each cylinder piston set features a standard 3-ring arrangement:

  1. Top Compression Ring (Barrel/Keystone Face): Coated with chrome or molybdenum for extreme heat resistance, sealing high combustion pressures and preventing blow-by gases.

  2. Second Compression Ring (Tapered/Scraper Face): Provides secondary compression sealing while scraping residual oil down the cylinder wall.

  3. Oil Control Ring (3-Piece or Coil-Spring Loaded): Regulates the oil film on cylinder liners to ensure proper lubrication while preventing oil from entering the combustion chamber.

• Material Composition: Fabricated from high-tensile nodular cast iron or alloy steel with high elasticity, wear resistance, and high-temperature tolerance.

• Surface Treatments: Nitrided or chrome-plated ring edges to resist scuffing, reduce cylinder wall friction, and extend service life.

Package Inclusions

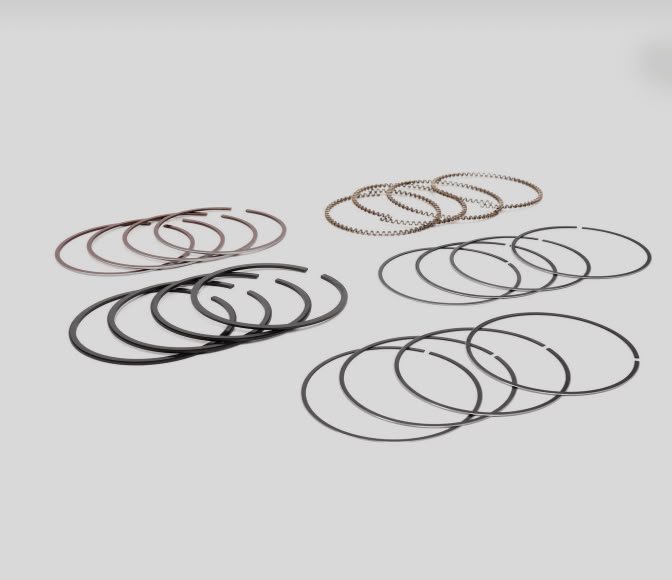

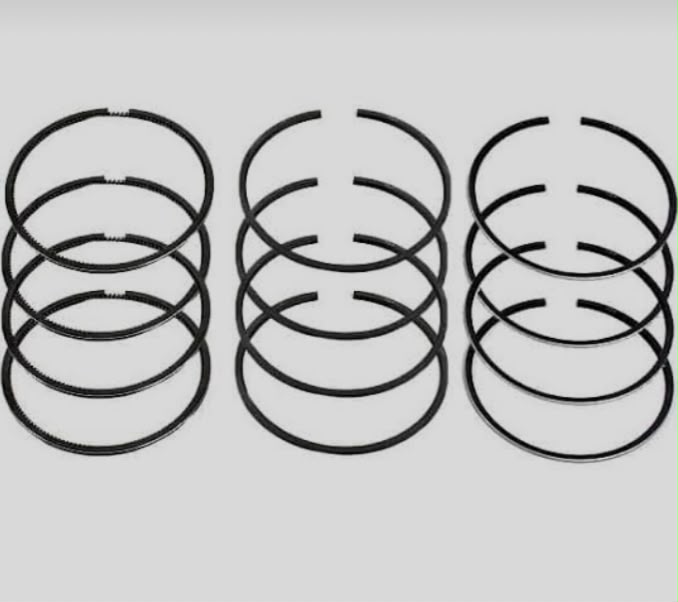

• Complete ring set per piston (includes Top Ring, Middle Ring, and Oil Control Assembly with Expander Spring).

• Note: Standard sets are sold individually per cylinder or as a complete 4-cylinder overhaul kit.

Primary Functions & Benefits

• Compression Restoration: Restores full cylinder compression to ensure maximum engine horsepower (75HP) and peak fuel efficiency.

• Oil Control: Eliminates blue exhaust smoke and reduces engine oil consumption by scraping excess oil back into the crankcase.

• Heat Dissipation: Efficiently transfers heat away from the piston crown to the water-cooled cylinder liner wall, preventing piston seizure.

Recommended Use & Maintenance Tip

• Application: Ideal for engine overhauls, high-mileage engine refurbishments, or addressing symptoms like excessive crankcase pressure (blow-by), loss of power, or high oil usage.

• Best Practice: When replacing piston rings, inspect the cylinder wall/liner for cross-hatching and wear ridges, and ensure ring end-gaps ($0.25\text{ mm} – 0.45\text{ mm}$ typical) are staggered at $120^\circ$ angles around the piston during installation.
